Porro Prisms
Still deciding? Get samples first, Contact US !
View similar products
Tag list
- Detailed
-
The Porro prism gets its name from inventor Ignazio Porro. It is a right-isosceles triangular reflective optical component. When used in pairs inside binoculars, monoculars and spotting scopes, it folds the optical path to realize a longer effective focal length within a compact housing.
Parameters
Specification
Material
Optical Glasses, Fused Silica, Infrared Material, etc.
Dimension Tolerance
+0/-0.2mm
Surface Quality 60-40 Flatness < λ/ 10 @ 632.8nm Wavefront Distortion < λ/ 4@ 632.8nm Clear Aperture ＞80% Comprehensive Angle 180°±10'' Roof Angle Accuracy <5” Bevel Roof is sharp edges, others protective chamfers Coating As customer's request How Prism Technology Works in Binoculars ？

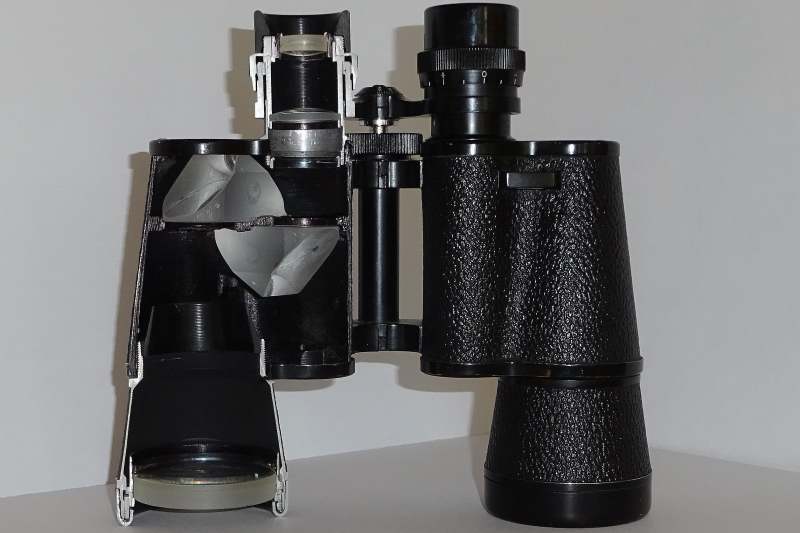

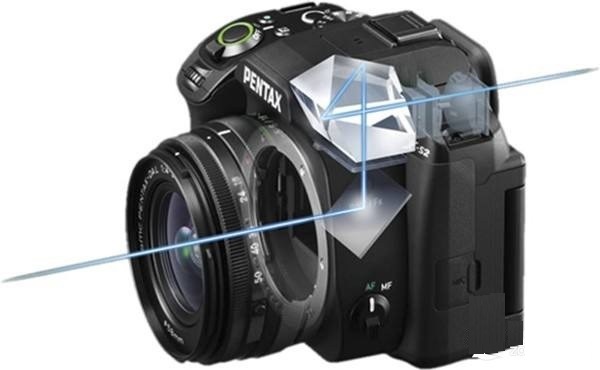

Before comparing roof and Porro prisms, let’s review the core roles of prisms in binoculars. The objective lens produces an upside-down, reversed image, which prisms straighten out via repeated internal reflections. This image erection process ensures you see a normal upright view. Since light fades slightly with each reflection, reflection angles, total reflection times and lens coatings directly impact light transmission, setting the two prism designs apart. Another key function is folding the optical path to cut down device length. A 10x binocular would be far too bulky otherwise, and roof and Porro prisms use different optical layouts to achieve a portable size.
Porro Prism Design and Function
Invented by Ignazio Porro in the 1850s, this system employs two right-angle prisms set perpendicular to one another, creating a zigzag light path and offset tube design. The prisms correct images through natural total internal reflection, achieving 90–95% light transmission for brighter views than equivalent roof prism binoculars. Wider objective spacing improves depth perception, perfect for wildlife and sports viewing. Simple manufacturing and alignment keep costs affordable, while the offset barrels require enhanced moisture protection.
